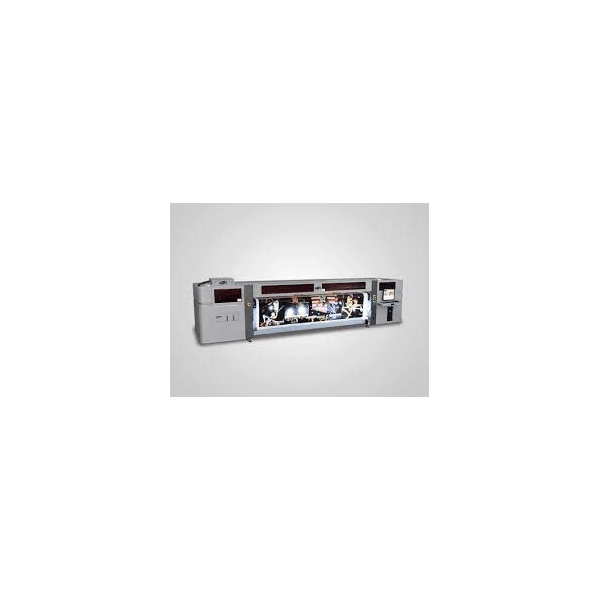

YOTTA YD-H3200KJ hybrid UV LED printer

Features of YOTTA’s YD-H3200KJ Hybrid UV

 Industrial Kyocera print heads

This hybrid printer adopts 3-8pcs industrial Kycorea printheads, delivering exquisite results with 4pl ink droplet and 600 × 2400dpi. The printer head has powerful internal heating function to keep the constancy of ink viscosity. It jets 40,000 droplet per second with one nozzle, and overall one printhead can print over 1 billion droplet per second, specially suitable for large-area panel and fast production.

Dual function machine

Our YD-H3200KJ has the dual purpose that not only keep most of advantages of flatbed printer, but new launch the function of roll-to-roll printer, which will specially suit for your different requirement.
Double negative pressure system
Separately control the negative pressure value of white ink and color inks, as individual viscosity and gravity with each other. It can ensure a smooth printing process and outstanding printing effect. The pressure value can be checked and adjusted according to production environment.
High Precise metal encoder grating
It adopts metal encoder grating which is more precise than the mormal. Besides, it is pretty anti-shake and easy to clean.

 Constant tension control

With the constant tension control function, YD-H3200KJ hybrid UV LED printer can protect media from wrinkling when performing roll to roll UV printing.
New media positioning device
With this function, it is more convenient to position the substrates being printed. It can achieve more accurate positioning and printing easily.
Anti-collision device
When colliding with obstacles, the carriage will stop automatically to protect printheads as well as human safety.
UV LED curing system
Our digital printing machines employ UV LED curing technology, which won’t generate excessive heat, allowing fast UV ink curing and direct-to-substrate inkjet printing on almost anything, heat-sensitive materials included.
;

With 3.2M print width, YOTTA YD-R3200KJ UV roll to roll digital printer delivers full-color large format inkjet printing with CMYK, Lc, Lm, white ink printing capability. UV-LED curing system achieves efficient ink curing.

Adopting high-end industrial Kyocera KJ4A printheads, fast speed and high resolution are its prominent advantages. This roll to roll machine has a maximum print resolution of 635×2400dpi. Featured with 4pl droplet printing, It is able to print out extremely delicate images with natural color transition. No matter it is applied to wallpaper, PVC film, canvas, vinyl, or other flexible materials, YOTTA YD-R3200KJ roll to roll printer can simplify your workflow and fully meet your requirements.

Rigid materials: glass, acrylic, wood, PVC sheet, metal plate, reflective film, corrugated board etc.
Flexible material: wall paper, advertising cloth, car sticker etc.
Suitable for flat media and roller media.
