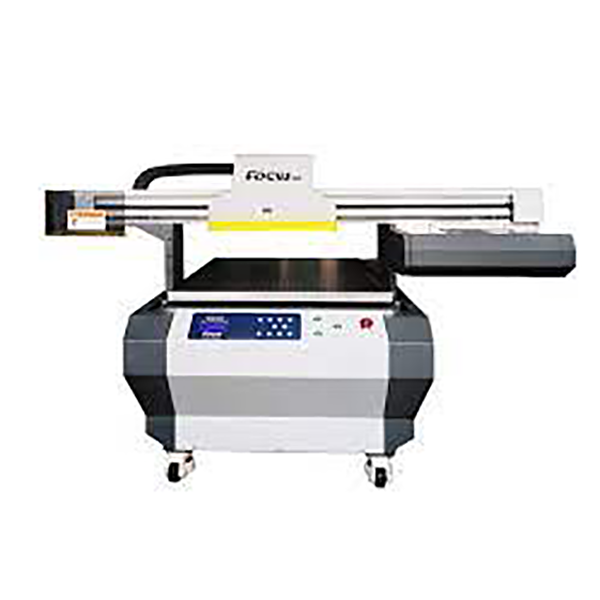

Galaxy-Jet X 6090 Flatbed UV Printer

Focus Inc.Galaxy-Jet X led uv flatbed printer with newest digital inkjet printing technology offers users direct-printing capabilities onto a virtually limitless choice of three-dimensional media. One print head for color,one print head for white ink, one print head for varnish,geared to on-demand printing of the very highest quality at industrial production levels of output, print the colorful furutre for YOU

FOCUS INKJET GALAXY-JET X 6090 UV PRINTER is a multi functional LED UV flatbed printer that is created by Focus industrial co.,ltd. This UV flatbed printer was built with industrial configuration as thicken aluminum profile, water circulation cooling system, 100W automatic detect UV Curing system…3 XP600 print head can print color,white and vanish also. Print resolution 720*720dpi- 720*3080dpi. This flatbed uv printer can print on bend, cylinder objects, balls and bottles. Output with good 3D texture printing result…

Product Specification

• Print Technology: Micro Piezo Inkjet

• Print Head: DX10/DX11/DX5/DX

• Head Channel: 18 channels

• Head number: 3-head, White+Color+Varnish

• UV system: 100-Degree adjustable

• Cooling system: Water cooling

• Temperature adjust:

• Auto on/off. 25-35℃

• UV wavelength: 395-405nm

• Head protection: Intelligent anti-scratch

• Print speed: 180s/A2 size(720*720dpi)

• Print model: Unidirection/Bidirction

• Print resolution: 720*720dpi-720*3080dpi

• Print type: One pass/Single/Copies

• White layer: Bottom/Top/Middle

• Rip software: FocusRIPV9.07/Wasatch/Ripprint

• Image type: Tiff, Jpeg, Png, Psd

• Repeat precision: 0.1mm

• Head cleaning: Auto flushing+Keep wet

• Max. print size: 60*90cm

• Print media: Hard/Flexible/Bottle

• Media thickness adjust: Software auto detection

• Max. print thickness: 13cm

• Ink type: UV ink

• Ink system: Refill ciss system

• Ink process system: Auto shaking + circulation

• Ink level: Auto detection+Auto alarm

• Color model: 8-color(CMYK+LC+LM+White+Varnish)

• Tank volume: 550ml refillable

• Color Rendition: ICC profile+Curve

• Position type: Laser marking

• Print table: Vacuum adsorption

• Table treatment: Teflon coating

• Print model: 3D. Wave. Rand. Eclosion

• Motion config: Servo motor

• Control interface: Control panel+Software

• Drive config: 4 linear rails+Dual Ballscrew

•  System require: WINXP/WIN7/WIN10 32/64bit

• Working environment: 18-25℃, 50% Humidity

• Working power: 480W

• Electric supply: 110V/220V

• Interface: USB2.0/3.0/TCPIP

• Gross weight/Net weight: 380KG/320KG

• Packing size: 155cm*155cm*98cm

• Machine size: 140cm*140cm*90cm
