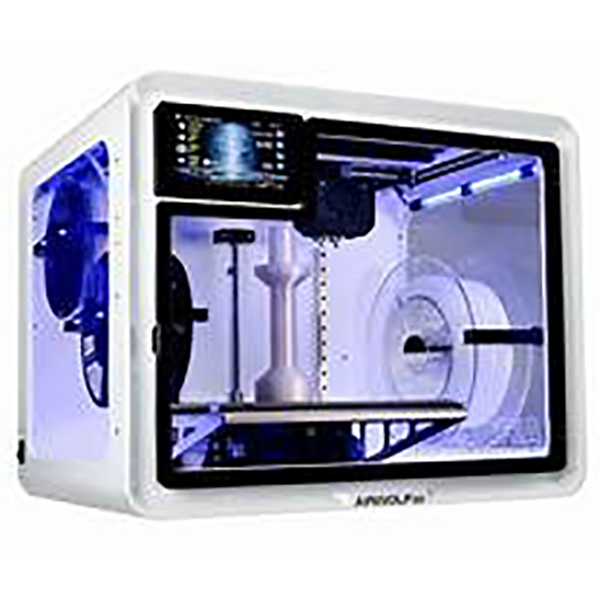

EVO R 3D Printer

Description

The EVOlution of desktop manufacturing continues with the EVO R, the latest edition to Airwolf’s EVO series of additive manufacturing machines. The EVO R embodies the ideal formula for engineers, educators, and designers: dependability, safety, efficiency, and affordability in a space-efficient package.

Features

GENEROUSLY-SIZED Manufacture full-size, end-use parts within the EVO R’s huge build volume in over 40 different materials. Optimized for production, the approximately 12 x 8.75 x 9-inch enclosed build volume is configured for producing medium-sized strong parts.

AUTO-LEVELING & CALIBRATION Enjoy Airwolf 3D’s proprietary auto-leveling technology along with AutoPrime, and Sweep. Ultra-durable Extended-Life nozzles save time and money while providing higher precision, speed and efficiency.

AIR CLEANSING SYSTEM EVO R features an oversized air purifying system for active containment of UFP and VOC emissions, providing an extra layer of protection and peace of mind when manufacturing in schools or smaller spaces.

PARTSAVE™ Avoid part failure due to power outage, an accidentally unplugged machine, or other unexpected interruptions. As soon as power is restored, PartSave™ empowers you to resume production right where it left off.

FAILSAFE™ Whether you run out of filament or experience a jam, FailSafe™ has you covered. Just place the print head where you left off, and FailSafe™ will do the rest, restoring your print and completing the job with time to spare.

Specifications

• Build Volume: 12″ x 8.75″ x 9” , 300 mm x 220 mm x 229 mm
• Recommended Max. Print Speed*: 100-150 mm/sec
• Recommended Travel Speed: 125+mm/sec
• Layer Height: Minimum layer height of 40 Microns (100 or above
• recommended)
• Calibration: Auto-Leveling
• Extruder Configuration: High-Torque Cartridge-Style Planetary
• Extrusion System
• Filament Size: 2.85mm +/-0.10
• Materials: Metal, Over 40, incl. ABS, PC, PP, Nylons, TPE, TPU
• Max. Extruder Temp.: 315°C
• Max. Bed Temp.: 160°C
• Nozzle Size: 0.35 Heavy Duty, 0.50 Heavy Duty, 0.80 Heavy Duty, 1.0
• Heavy Duty Nozzle Type: Extended-Life
• Print Head: Dual High-Flow AX 2
• Print Plate Material: Borosilicate Glass
• Connectivity: Ethernet, USB Cable, USB Drive
• File Types: AMF, GCODE, STL
• Power Requirements: Input “100 – 240 V 4 A, 50 – 60 Hz”, Output “221
• W max. 24 V DC, 9.2 A”
• Provided Software: APEX
  Supported OS: MacOS, Windows
• Travel Speed: 125+mm/sec MAX
• Upgradeable: Yes
• Frame Construction: One-piece aluminum main frame
• Print Via Removable Device: USB Stick + Onboard Storage
• Overall Size: 22″H x 21″D x 27″W
• Weight: 55 lbs.
