EXAKT 80E Plus Three Roll Mill

• Achievable fineness of less than 1 μm
• Gap or power mode optionally selectable per gap
• One-pass calibration – automatic adjustment of the spacing and parallelism of the rollers
• Electronic display of all operating parameters
• DataLog – documentation of processing parameters
• Throughput up to 14 or 27.5 l/h with a gap width of 5 μm
• Roller temperature control for optimum process control
• Safe working – overload protection, cleaning and reverse mode
• Scale-up from the laboratory to production

Safety

• Optional safety equipment is available in three different widths 85mm, 170mm, 200mm.

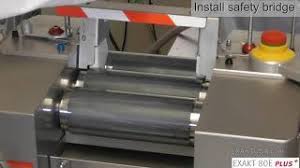

• Safety bridge
• Nip cover
• Safety cover
• Safety hopper
• Splash guard
• Nip guard

Highlights

• Experience Smart Dispersion
• Know what’s happening in the gap with real-time analysis
  Continuous recording and documentation of production parameters
• Designed for safety – more optional safety equipment than ever before
• Throughput up to 18 l/h at a 10 μm gap
• Adjustable gap size from 5 to 180 μm
• One-pass calibration with auto adjustment
• Meets or exceeds the safety requirements specified in ANSI.
• Self-aligning scraper apron/knife with adjustable tension
• All stainless steel surfaces for easy cleaning
• More power with smoother, quieter operation
